Reflex Level Gauges used for monitoring and measuring the level of the tank or any reservoir. It is a very efficient and cost-effective choice, and works in many cases while offering advantages in terms of low initial, operation as well as maintenance cost, easy and accurate level reading, etc. Sahyadri Industrial Traders is one of the best Reflex Level Gauge Manufacturers in Daund, Maharashtra. There are certain cases where these gauges cannot be used; therefore, one needs to be very careful while making the selection.
Reasons To Buy Our Reflex Level Gauges:
- Have a prism glass window that works on the basic optical principles and helps to enhance the indication of the liquid level.
- Best for high temperature & pressure liquid storage tanks.
- Suitable to be used in petrochemicals, pharmaceuticals, fertilizers etc.
- Ensure accurate reading and known for optimal performance.
- Give safe and visual liquid level indication within the vessel even under high pressure.
- Have a low long-term cost and give users value for money.
- Can be used in most of the fluids and applications.
- Has no invisible sections and observe the liquid level more accurately.
- Simple to install and can be interchanged during installations.
As the best Reflex Level Gauge Stockist and Dealer, we have gauges to be used in different applications.
Place Your Order With Us Now!
We are one of the top Reflex Level Gauges Exporters and Suppliers in India. You can submit your custom orders or specific enquiry related to the same from the website. Or else, call our executives for more details.

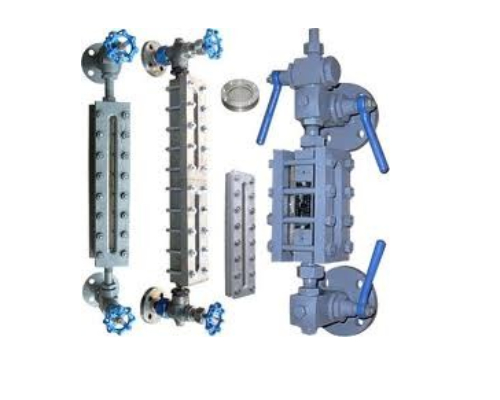

We are among the prominent Reflex Flat Glass Level Gauge suppliers. The Reflex Flat Glass Level Gauge provided by us is made of best quality raw components that help in enhancing its performance levels. It is designed for safe and positive visual indication of liquid level in vessels under high pressure & temperature conditions. The Reflex Flat Glass Level Gauge is a flat glass gauge, which has precision molded prismatic grooves cut on its inner side, which comes in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapor space is reflected back towards the viewer, making it appear silvery-white. Thus, a sharp clear line marks the liquid level.
Reflex : The liquid chamber is formed by one piece metal body, reflex gauge glass, sealing gasket, cushion and cover plate all held together by U-bolts & nuts. The gauge glass sandwiched between the gasket & cushion is placed on front side for viewing of liquid level & held in the recesses machined in the body and cover plate. The level gauge is usually provided with shut - off valves at either ends to isolate the gauge.
Transparent : The construction is similar to Reflex except that the liquid chamber is formed by one piece metal body and a pair of transparent gauge glass plates.
CC- DISTANCE- UPTO 500mm END CONNECTION- FLANGED or SCRWED SIZE- 15NB, 20NB, 25NB IBR AVAILABLE.
