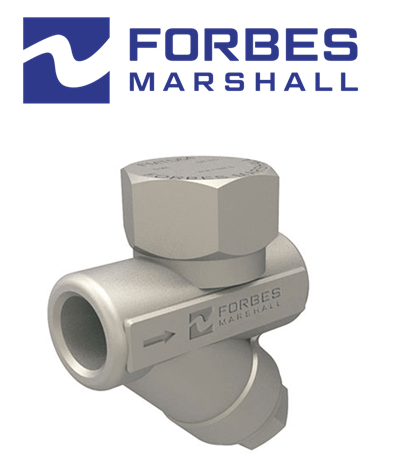

Forbes Marshall Steam Trap

Forbes Marshall Steam Trap

Sahyadri Industrial Traders, a reputable name among suppliers, exporters, and distributors, proudly presents the renowned Forbes Marshall Steam Trap series to cater to the dynamic needs of the industrial sector. Operating with a commitment to excellence, Forbes Marshall has garnered a legacy in crafting unparalleled steam engineering and control instrumentation solutions for the process industry. With an unwavering focus on Energy, Efficiency, and Process Automation, Forbes Marshall integrates cutting-edge global technology to deliver top-tier solutions.

Forbes Marshall's collection of superior-quality Steam Traps encompasses a range of meticulously designed products, including Thermodynamic Steam Traps, Ball Float Type Steam Traps, Inverted Bucket Type Traps, and the innovative Compact Module Steam Traps, among others. With a rich history spanning decades, Forbes Marshall Steam Traps have consistently earned the trust of numerous industries for the reliability and performance. The Thermodynamic Steam Trap variants like TD64, FMTD76-M, and FMTD722-M, along with the Tracer Line Trap/Air Vent FMTLT53/FMAV53, Instrument Tracer Line Trap FMMST63, Bucket Trap FMBT30, and Ball Float Type Trap SOFT31/SOFT53, present a comprehensive lineup tailored to meet diverse operational requirements.

Forbes Marshall has been building steam engineering and control instrumentation solutions that work for process industry. Forbes Marshall's goal is to provide solutions in Energy, Efficiency and Process Automation, using the best technology the world has to offer. Forbes Marshall provide superior quality of Steam Trap like Thermodynamic Steam Trap, Ball Float Type Steam Trap, Inverted Bucket type Trap, Compact Module Steam Trap etc. It proven from decade that Steam trap of Forbes marshall are always trustful by many Industries.

“We are Genuine & Original Forbes Marshall Trap supplier”

At Sahyadri Industrial Traders, we are dedicated to delivering the industry's best, and Forbes Marshall aligns seamlessly with our commitment to excellence. With Forbes Marshall Steam Traps, our clients gain access to a reliable solution that embodies years of expertise, innovation, and proven performance. Join the league of satisfied industries that have embraced Forbes Marshall's technology, and elevate your energy efficiency and process automation to new heights.

Reasons to Choose us:

Sahyadri Industrial Traders presents Forbes Marshall Steam Traps for industrial needs.
Forbes Marshall is a renowned brand, synonymous with steam engineering and control solutions.
A focus on Energy, Efficiency, and Process Automation underpins Forbes Marshall's offerings.
The range includes Thermodynamic, Ball Float, Inverted Bucket, and Compact Module Steam Traps.
Forbes Marshall Steam Traps boast a legacy of reliability and are trusted by numerous industries.

Enquire Now

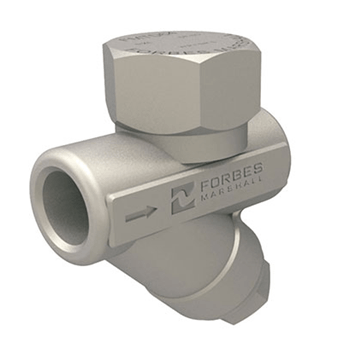

FORBES MARSHALL Thermodynamic Steam Trap TD64

The Forbes Marshall Thermodynamic Trap FMTD64,with inbuilt Strainer and full stainless steel construction, is best suited for header and mainline drains. Also available with Flanged ends with Model FMTD64FL & with DN25 Socket Weld Ends Model FMTD64SW25 & is ready to install for better Performance

Sizes DN 15, DN 20 and DN25 Screwed BSPT/BSP/NPT & Socket Weld Ends

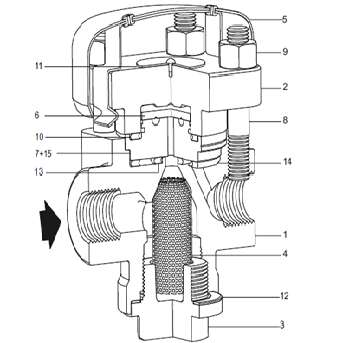

FORBES MARSHALL Thermodynamic Steam Trap FMTD76-M

The Forbes Marshall Thermodynamic Trap, FMTD76-M, is a maintainable high pressure thermodynamic steam trap with integral strainers and a replaceable seat to ease maintenance. It has been specifically designed for main drainage application up to 62 bar g. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperature, wind, rain etc.

Size and Pipe Connections

DN 15 and DN 20 Screwed BSPT/NPT/BSP and socket weldable ends

Notes

1. Available with Class 150,300 and 600 weld on flanges on request
2. Available with IBR certificate.

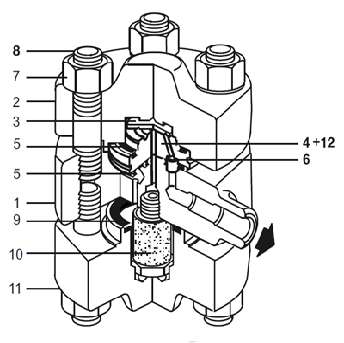

FORBES MARSHALL Thermodynamic Steam Trap FMTD722-M

The Forbes Marshall Thermodynamic Trap, FMTD722-M, is a maintainable high pressure thermodynamic steam trap with an integral strainer and a replaceable seat for ease of maintenance. It has low capacity and is specifically designed for superheated applications up to 250 bar g.

Sizes and Pipeline Connections

DN 15 and DN 20 butt weld ends to suit SCH 160 pipe.
DN 15 and DN 20 socket weldable ends to ASME (ANSI).
B 16.11 Class 6000

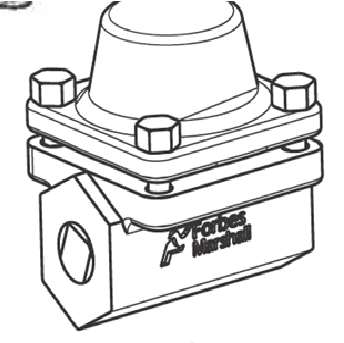

FORBES MARSHALL Tracer Line Trap/ Air Vent FMTLT53/ FMAV53

The Forbes Marshall Tracer line trap FMTLT53 or Air Vent FMAV53 can be used for air venting application from steam mainline or steam trap for tracer line application for removal of condensate.

Sizes DN 15, DN 20 and DN25 Screwed BSPT/BSP/NPT & Socket Weld Ends

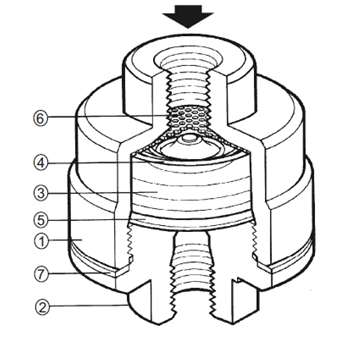

FORBES MARSHALL Instrument Tracer Line Trap FMMST63

The Forbes Marshall Instrument Tracer Line Trap, FMMST63, is a maintainable balanced pressure steam trap manufactured in stainless steel. It is corrosion resistant and easily maintainable.

Sizes DN 06 & DN BSPT/NPT End

FORBES MARSHALL Bucket Trap FMBT30

The Forbes Marshall Bucket Trap, FMBT30, is a cast iron inverted bucket steam traps designed to be fitted into horizontal pipelines. These traps are maintainable in-line and are complete with integral strainer screen.

Size and Pipe Connections- DN 15 , 20 and 25 with Screwed BSPT/ NPT

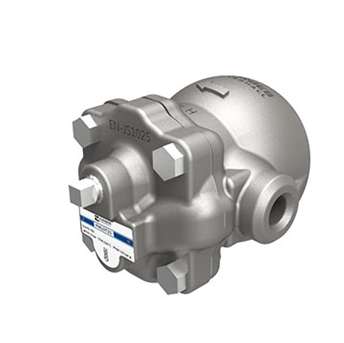

FORBES MARSHALL Ball Float type Trap SOFT31/ SOFT53

The Forbes Marshall Single Orifice Ball Float Trap is condensate drain trap SOFT53 is Cast Steel body & SOFT31 is Cast Iron body.

Sizes DN 15 to DN 50

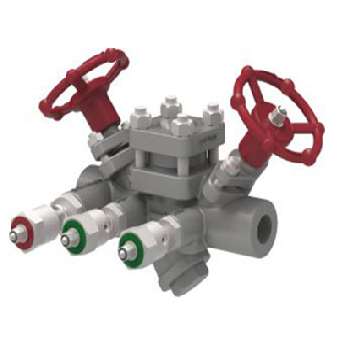

FORBES MARSHALL Compact Module Thermodynamic

The Forbes Marshall Compact Module Thermodynamic Trap, CMTD42M-S, is a compact thermodynamic trap module designed with an in built upstream isolation piston valve and bypass valve for steam application up to 42 bar Replaceable trap internals and inbuilt strainer eases online maintenance. It comes with diffuser which gives smooth discharge and Isotub eliminates effects on performance irrespective of climatic conditions.

Sizes- DN 15, 20 Socket weldable, Screwed end connection.
